4. Cable Penetrator

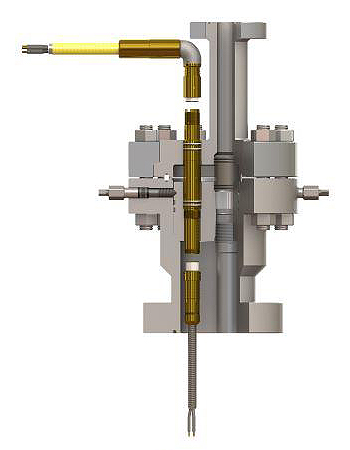

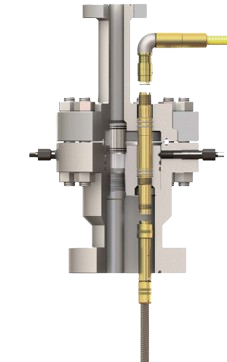

Metal-Lok™

This is the workhorse of the Metal-Lok family. Rated and tested to 300°F (149°C) and 5000 psi, it covers the majority of ESP well applications and is designed and tested to handle harsh environments. The use of PEEK and the minimal use of elastomers make it highly resistant to downhole pressure decompression. This product has been subjected to BIW’s qualification regimen, proving its robustness and reliability. This system is designed to work in wellheads with or without bonnets.

⚙ Specifications

Environmental	300°F (149°C), 5000 psi
Electrical	5000 VAC, 20 to 120Hz, 140 to 160 Amperes
Approvals	CSA Approved for Class 1 , Division 1, Group C and D Hazardous Locations, IEC and ATEX Certification Exd IIB T4 G

✔ Features

Decompression Resistant	Decompression Resistant
Field Attachable Lower	Eliminates need for a rig splice and is highly adaptable to your ESP Cables
Metal-Lok™ Keying	Prevents damage that could result from inadvertent turning or mishandling of the surface connector

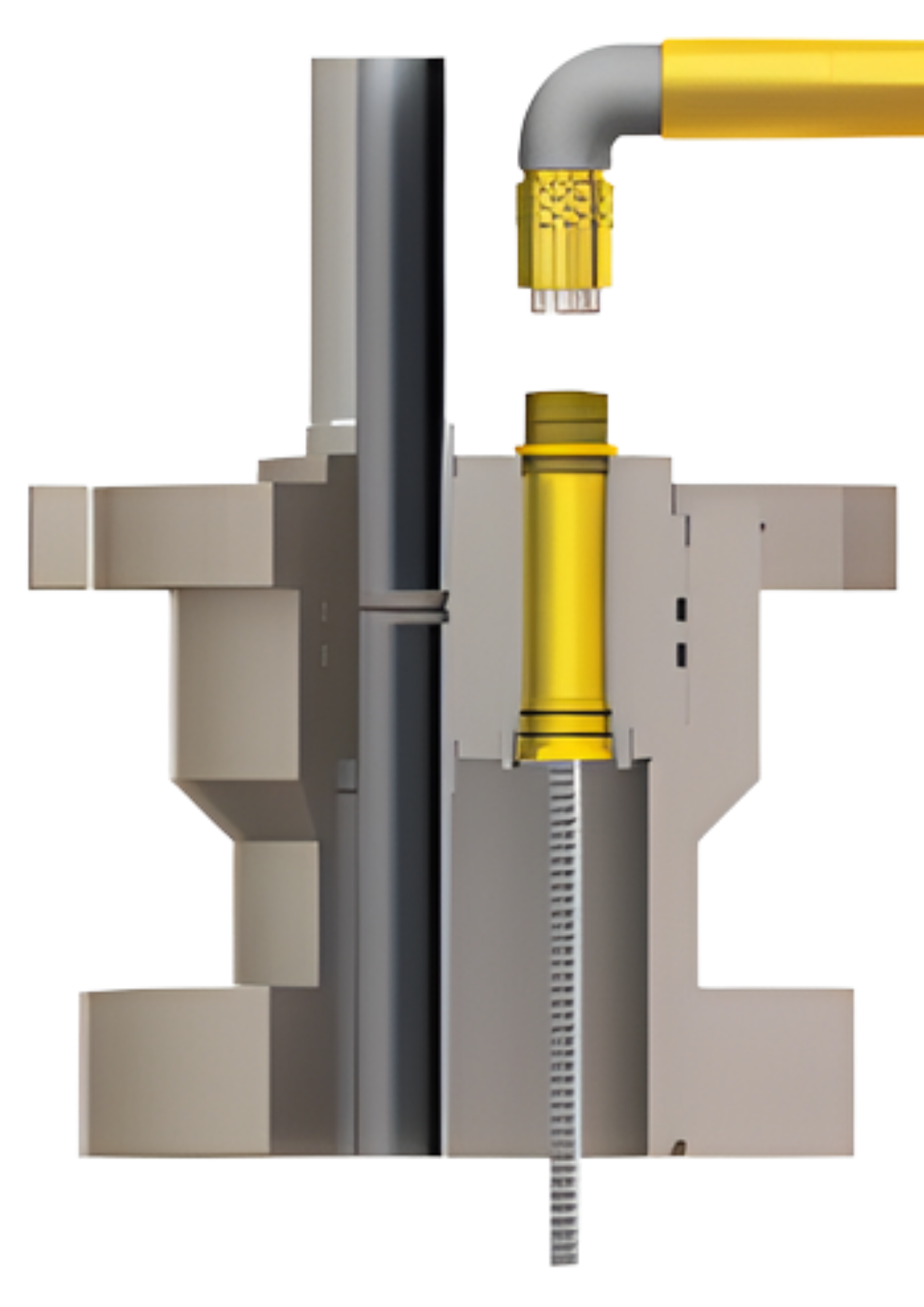

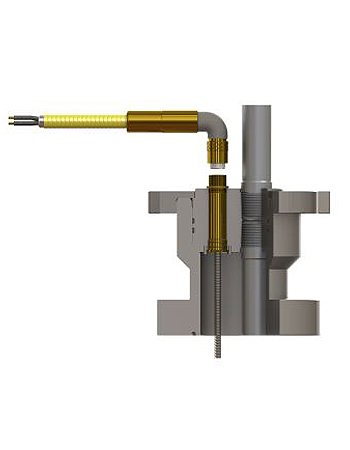

E-ZEE Feed®

The E-ZEE Feed Wellhead Penetrator System is designed for easy conversion from cable pack-off with minimal wellhead modifications. It is supplied as a field attachable kit. This two-piece, “stab-in” design reduces cable handling issues By permitting fast coupling of the surface cable to the penetrator, making it is Easy to install or to pull during workovers. The E-ZEE Feed comes in both 3000 psi and 5000 psi versions to accommodate most wellhead pressure ratings. The E-ZEE Feed is available for applications requiring certification for hazardous locations and for applications where this is not required.

⚙ Specifications

Environmental	300°F (149°C), 3000 or 5000 psi
Electrical	5000 VAC, 20 to 120Hz, 140 to 160 Amperes
Approvals	CSA Approved for Class 1 , Division 1, Group C and D Hazardous Locations

✔ Features

Bottom-fed Field Attachable Installation	Bottom-fed installation, coupled with field attachable design, provide the easiest, quickest, and most reliable installation
Full Qualification	Proven reliability by passing BIW's rigorous qualification testing and numerous successful field installations
High Performance Materials	High Strenght, high temperature insulators provide safety and reliability

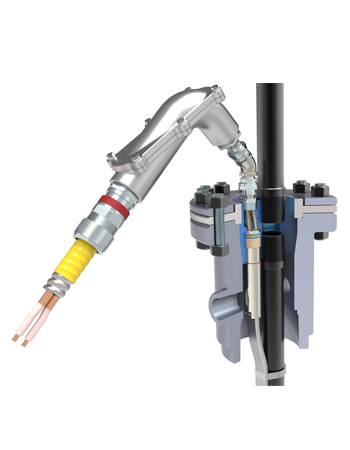

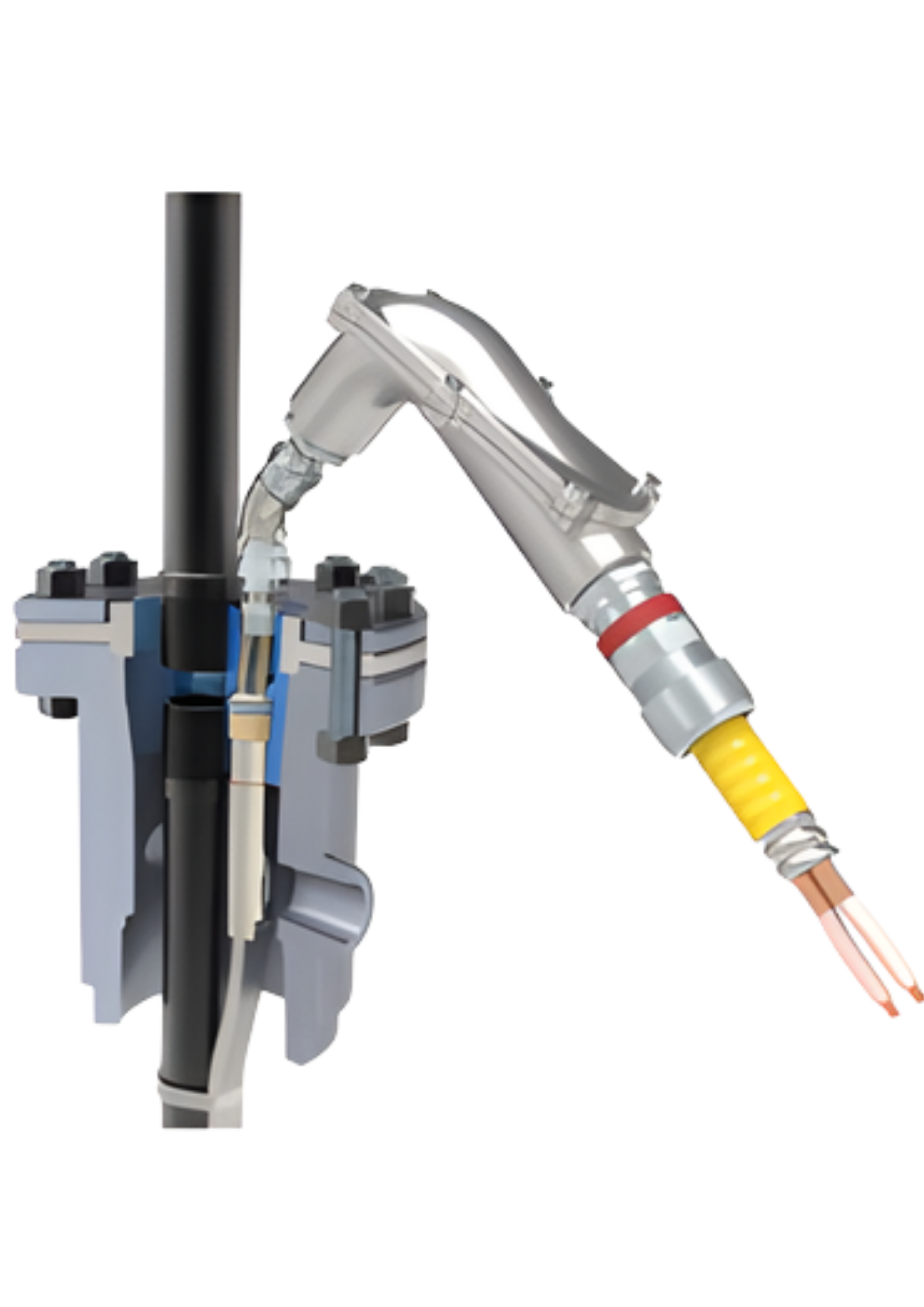

Uni-Lok™ Wellhead Penetrator

The Uni-Lok Wellhead Penetrator System is designed to provide the quickest and easiest pass-through of ESP power at a very competitive price. Unlike other products, the Uni-Lok system offers a complete verified pressure block inside the tubing hanger ensuring that downhole fluids stay downhole. This field attachable system is designed as a single plug-and-play pressure barrier that fits into sealing bores as small as 1.75” and to have the flexibility to fit/re-use any existing surface cable infrastructure. It has passed BIW’s rigorous testing protocol and is available for applications requiring certification for hazardous locations and for applications where this is not required.

⚙ Specifications

Environmental	300°F (149°C), 3000 psi
Electrical	5000 VAC, 20 to 120Hz, 140 Amperes
Approvals	Pending CSA Class 1 , Division 1, Hazardous Locations and ATEX Hazardous

✔ Features

Slim Profile	Fits in tight annular spaces and in smaller bore tubing hanger (1.75") that fits nearly all tubing hangers
Field Attachable	Field attachable design eliminates a downhole splice and is highly adaptable to all ESP Cables
Well Control	Provides a complete pressure block in the tubing hanger, guaranteeing that well fluid and gases stay downhole
Versatility	Designed to re-use existing surface installation or be installed onto existing surface cable

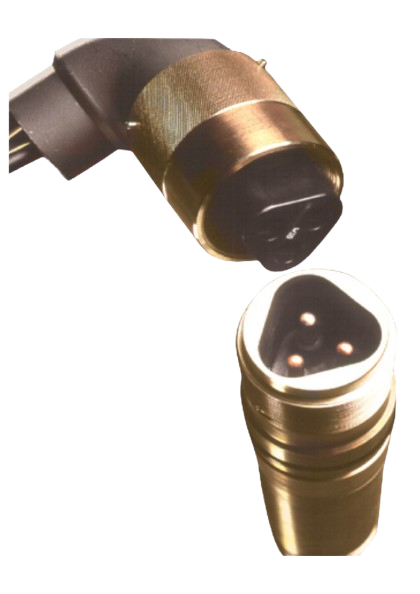

5. Captor Penetrator System

Rated for 300°F and 5000 psi, the Captor Penetrator System covers the majority of ESP well applications and is designed and tested to handle harsh environments. The Captor system has positive keying between the feedthru and the surface connector using a Delta-shaped key that engages with a triangle-shaped opening in the feedthru. This system positively prevents inadvertent rotation of the surface connector when engaged with the feedthru.

Ease of installation is enhanced because the surface connector may be oriented at one of three positions with respect to the feedthru.

Surface Connectors are supplied with coupling rings retained by ball bearings. This retention method ensures longer life, better resistance to corrosion, and easier engagement.

⚙ Specifications

Environmental	300°F (149°C), 5000 psi
Electrical	5000 VAC, 140 Amperes
Approvals	Approved for Class I, Division 1, Groups C and D Hazardous locations in the USA and Canada ATEX Ex d IIB T5 Gb

✔ Features

Low Profile Surface Connector	90-degree surface connector has reduced clearance requirements making it possible to fit in low clearance top flange installations
Metal-to-Metal Keying	Increases the robustness at surface connection as it prevents damage caused by rotation

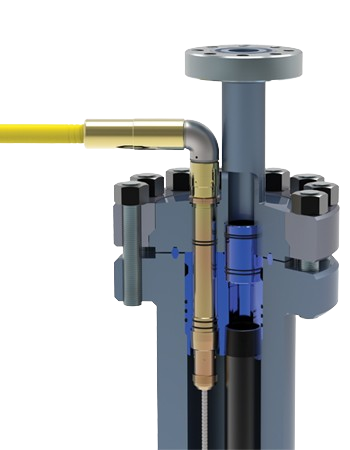

6. E-ZEE Feed 5000 Wellhead System

The 5K E-Zee Feed is an advanced 2-piece penetrator system intended for use in wells where downhole pressure may vary, such as with hydraulic fracturing. The penetrator is intended for installation from below the tubing hanger. Attachment of the field attachable penetrator to ESP cable is quick, easy, and reliable. When prepared cable conductors are inserted into the contacts, a single compression nut energizes all three seals simultaneously. A secondary PEEK pressure block easily absorbs momentary pressure excursions without damage to penetrator seals or other components.

⚙ Specifications

Environmental	300°F (149°C) with 5,000 PSI rating (tested to 13,500 psi)
Electrical	5,000 VAC, up to 215 Amperes
Approvals	Approved for Class I, Division 1, Groups C and D Hazardous locations

✔ Features

Field Attachable	E-Zee Feed 5000 attaches easily to downhole ESP Cable. After inserting prepared cable into the connector contacts simultaneously, a single compression nut energizes all seals. Approved Surface Cables are factory installed to Surface Connectors.
Sealing	Secondary PEEK pressure block allows penetrator to withstand momentary pressure fluctuations without damage, especially in hydraulic fracturing applications.
Installation	Bottom-fed penetrator installation.

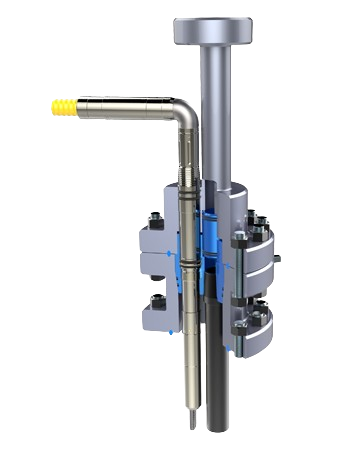

7. Metal-Lok Slimline Wellhead

The Metal-Lok Slimline is a versatile new product in the BIW line. It is designed to fit into sealing bores, as small as 2.25” and is suitable for 350°F / 5000 psi service. The penetrator system comes with BIW’s innovative crimp-free contact, eliminating the need for crimp tools. This new contact withstands a minimum of 1,000 pounds of pull force, making it stronger than most crimped contacts. The crimp-free contacts will reduce the installation complexity, saving precious rig time. Suitable for Flat or Round ESP cable up to AWG 2. Electroless Nickel plating is used on the penetrator, the lower connector and the surface connector – improving long term performance. Metal-Lok Slimline has passed rigorous qualification testing at temperature, pressure and decompression in environmental well fluids and gas while under electrical monitoring. It is ATEX and CSA C1D1 & C1D2 certified.

⚙ Specifications

Environmental	300°F (149°C), 5000 psi
Electrical	5000 VAC, 20 to 120Hz 140 Amperes to 180 Amperes
Approvals	CSA approved for Class 1, Division 1, Groups C and D Hazardous Locations

✔ Features

Keying	Positive metal keying that prevents damage due to mishandling of the Surface Connector.
Crimp-free Contacts	Contact connect easily to downhole ESP cable. Crimp-free contacts withstand 1000 lbs pull force.
Quick Thread Technology	Full engagement of Surface and Lower Connectors requires on 1 full tern of Coupling Ring; Eliminates need for fine threads to meet Hazardous Location flame path requirements. The Surface Connector and Lower Connector attach to the Penetrator with a single turn of the Coupling Ring. Quad-start engagement threads eliminate fine threads that are easily damaged.
Field Attachable	Field Attachable Lower Connector

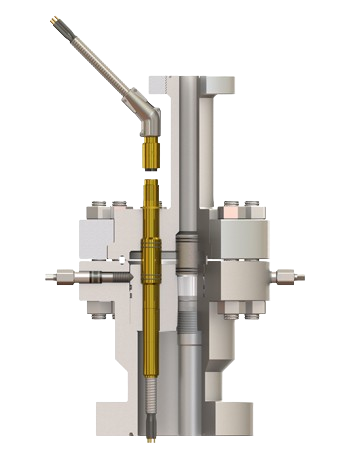

8. Rubber Molded 2-Piece Penetrator System

For wells with minimal clearance under the tubing hanger, BIW offers 2-piece wellhead penetrator solutions with downhole ESP cable factory assembled to the bottom of the penetrator. These FTLM (Feedthru with Lower Molded) penetrators are an effective answers to clearance problems. FTLM penetrators are installed from below the tubing hanger and secured from above with a retention nut. With a separable surface connector on top, workovers are fast and easy. FTLM penetrators may be built with most types of ESP cables with cable sizes AWG 1, 2 and 4, both flat and round.

⚙ Specifications

Environmental	300°F (149°C), 5000 psi
Electrical	5000 VAC, up to 215 Amperes
Approvals	Approved for Class I, Division 1, Groups C and D Hazardous locations in the USA and Canada, ATEX for Hazardous Locations, IEC for Hazardous Locations.

✔ Features

General	Built to match wellhead and tubing hanger designs. Available in lengths from 20 to 32-inches. Supplied with molded-on cable for convenient splicing to downhole ESP cable.
Flexible Design for Wellheads	Installed into the tubing hanger from below, for easy installation after cable splice is made. Available with a variety of retention methods, including jam-nuts at top of tubing hanger and threaded retention sleeves below the tubing hanger.
Advanced Surface Connector Design	Factory molded Surface Connectors are supplied with Ball Bearing Coupling Nuts, for smooth engagement and resistance to corrosion.
Replaceable Sealing Elements	Surface connectors feature Replaceable Sealing Elements. These provide reliable O-ring sealing to the extended lip of the penetrator, and the O-rings can be easily replaced at time of work-over for as-new sealing when the Surface Connector is re-used.

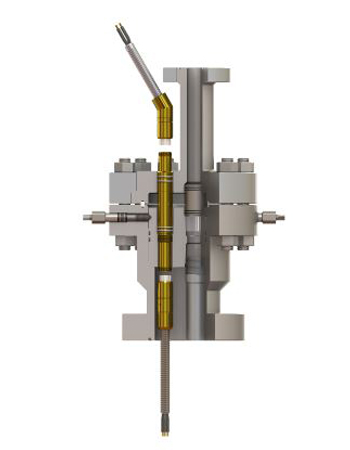

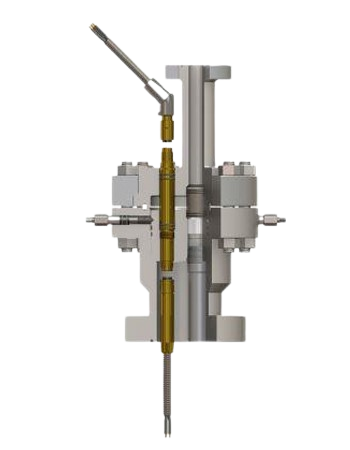

9. Rubber Molded 3-Piece Penetrator System

BIW Connector Systems Rubber Molded 3-Piece Penetrator System is a vulcanized elastomeric system, long recognized for superior performance. This design has been optimized for long life and utmost safety with approvals for hazardous locations under Class 1 Division 1, ATEX and IEC. 3-Piece systems offer the simplest installation and workover procedures. Our Rubber Molded 3-Piece Penetrator solutions are one of several technologies designed for safe, reliable and ease of use. The Surface Connectors are supplied with coupling rings retained by ball bearings. This retention method ensures longer life, better resistance to corrosion, and easier engagement. For more information click here. The Surface Connectors are also supplied with replaceable sealing elements. These new seals consist of O-rings that are easily replaced with a special tool, making re-use both easy and safe.

⚙ Specifications

Environmental	300°F (149°C), 5000 psi
Electrical	5000 VAC, up to 215 Amperes
Approvals	Approved for Class I, Division 1, Groups C and D Hazardous locations in the USA and Canada, ATEX for Hazardous Locations, IEC for Hazardous Locations

✔ Features

Ball Bearing Coupling Ring on Surface Connectors	Easy engagement of Surface Connectors, even when cable weight adds side loading. Superior corrosion resistance.
Flexible Lower Connector Configurations	Available as Field Attachable or Factory Molded Lower Connectors with cable pigtails.
Replaceable Sealing Elements on Surface Connectors	Ensures positive sealing between connectors, including when connectors are re-used. O ring seals are easily replaceable with the use of a special tool.
